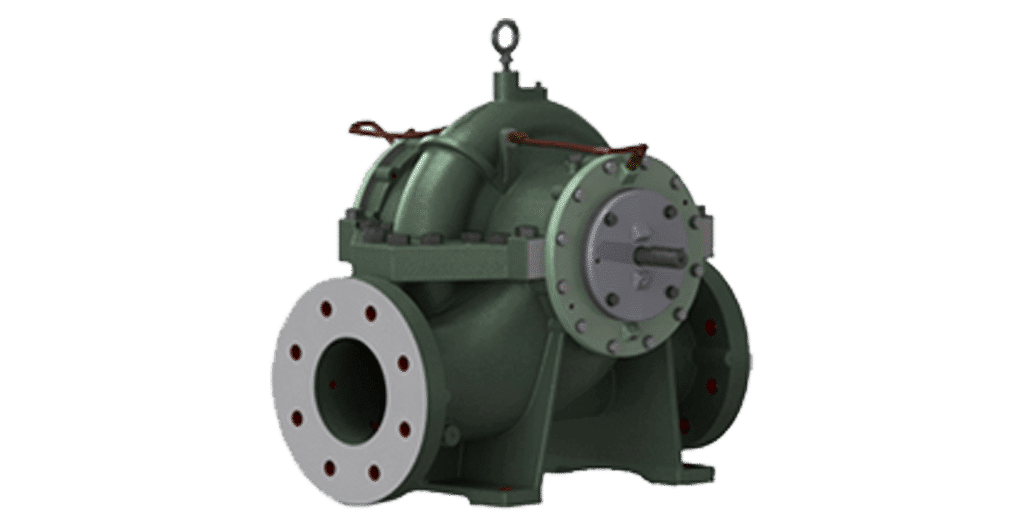

HS Series Horizontal Split Case Pumps

HS Series Horizontal Split Case Pumps
Modular Construction for Maximum Application Flexibility

Taco’s HS Series Horizontal Split Case Pumps are a major advance in pump design. By using a new, modular construction technique, Taco can now make available pump performance from 83 GPM to 2201 GPM from just three basic bearing and shaft modules.

This modular construction gives you simplified maintenance and the design flexibility to accommodate future performance needs. With four models to choose from, ranging from 10 HP to 100 HP, you can easily choose the optimum pump design for your specific system requirements.

Instruction Sheet
Submittal Data
Replacement Parts
Performance Curves
eLink Instructions

Introducing eLink® Connectivity

eLink® is Taco Comfort Solutions’ line of cloud services, providing users access to their devices data and performance while giving them control over their comfort. Using a Taco product featuring eLink provides users with support, monitoring, or controls straight from their mobile phone, tablet, or laptop. Now, it’s even easier to get important information, status updates and control of your Taco products. eLink provides the answer for both residential and commercial applications, just look for the logo to see if your product is connected.

Products featuring eLink are categorized into three application specific categories: Support, Monitoring, and Controls. These features of eLink identify how the cloud provides you with the support and control you require.

Learn More

Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data
Flow Range: 83 – 2201 GPM
Head Range (ft): 7′ – 240′
HP: 10 – 100
Sizes: 6



Features
  • Shorter Lead time
  • Bearing and seal can be removed without removing the top cover
  • Improved efficiency and BEP
  • HS Pumps are a direct bolt-in to the existing
Applications
  • Hot Water Heating Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Hydronic Heating & Cooling
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal
Models & Related Documents

HS060509/TA1224
1160 RPM, 1450 RPM IEC, 1450 RPM NEMA, 1760 RPM

HS060511/TA1229
1160 RPM, 1450 RPM IEC, 1450 RPM NEMA, 1760 RPM

HS060512/TA1230
1160 RPM, 1450 RPM IEC, 1450 RPM NEMA, 1760 RPM

HS060515/TA1238
1160 RPM, 1450 RPM IEC, 1450 RPM NEMA, 1760 RPM
