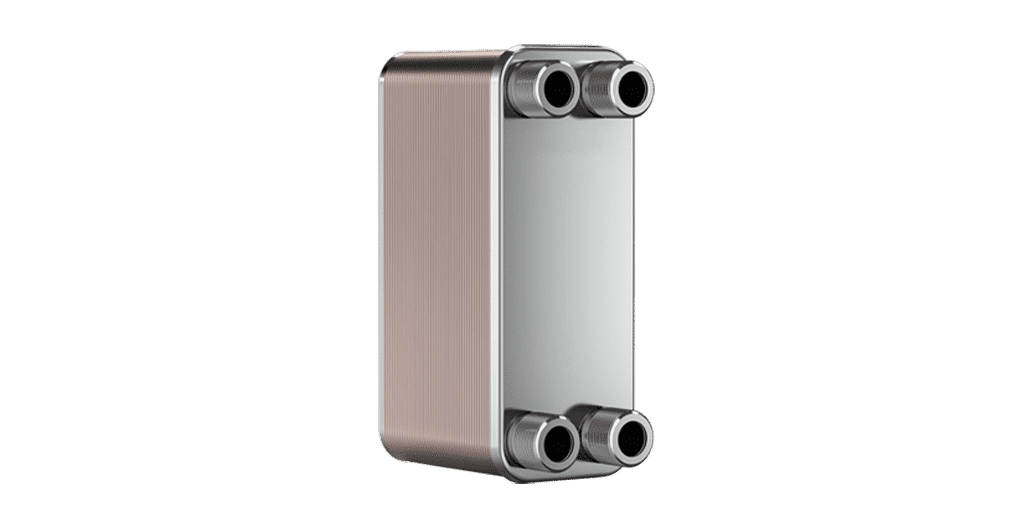

TB Brazed Heat Exchangers Series

For Domestic Hot Water, In-Floor Radiant Heating, Snow-Melt, Swimming Pool And Spa Applications

Rugged, reliable Taco TB Brazed Heat Exchangers Series represent the latest technology in high-performance heat exchangers. The Taco TB Brazed Heat Exchangers Series is designed specifically for domestic hot water applications, in-floor radiant heating, snow-melt, pool and spa applications (except salt water) and in general a more compact alternative to plate & frame and shell & tube type heat exchangers. These compact units feature copper brazed, stainless steel plates that offer a highly efficient, low fouling transfer service. All units have male pipe thread fittings, and mounting stud bolts are standard on most models.

For pool and spa applications, that are not salt water, we can offer SMO (chloride rates up to 900 ppm) for the plates and copper brazing.

Catalog
Instruction Sheet
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep



We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data
GPM: 1-400 in a single unit
Sizes (in): 3×8″ – 14.5″x34″
Connection sizes: 3/4″ – 4″ (NPT up to 2 1/2″ and flange for 3″ & 4″)
Features
  • Compact size
  • High turbulence aids in self cleaning
  • Extremely efficient with approx. 95% of material used to transfer heat
  • Available with ASME U or UM Stamp
  • Single Wall and Double wall
  • Insulation packages available
  • Available with mounting brackets
  • Corrugated Channel Plates
  • Brazed Joint Contact Points
  • No Gaskets or Frame Parts
Applications
  • Hot Water Heating Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Hydronic Heating & Cooling
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal
  • Pool and Spa
