Hot-Link System

Hot Water Recirculation System

Taco technology saves thousands of gallons of water each year.
According to the Department of Energy, the average household wastes up to 12,000 gallons of water each year waiting for hot water. That’s energy, money and resources down the drain. We have the domestic hot water recirculation solutions that are right for the job, including our, Hot-Link ® System.

Instant hot water. No additional plumbing or electrical!

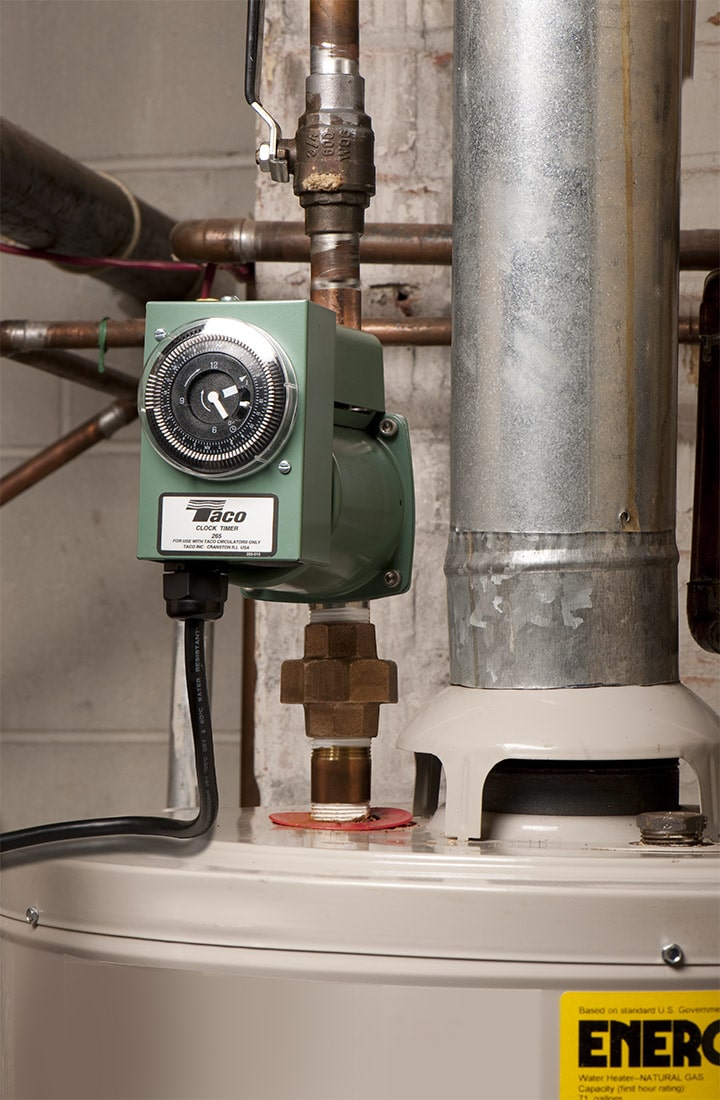

Hot-Link ® System is a quick, easy retrofit using the existing plumbing. Mount the by-pass valve under the sink and the pump at the water heater. The valve’s unique thermal disk technology sends cooled water back to the water heater so hot water lines remain hot.

Cleaning made easy.
There’s no need to remove the Hot-Link valve from the piping to keep it clean. Our exclusive clean-in-place design makes short work of keeping the system operating properly.

Catalog
Instruction Sheet
Submittal Data
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

Max. Fluid Temp.: 220°F (104°C)
Max. Operating Pressure: 125 PSI
HP: 1/40
Voltage: 115V 60 Hz, Single phase
Max. AMPS Rating: .52
Connection Sizes: ¾” NPT Male and Female Adapter Union Tall Piece

Features
  • Exclusive clean-in-place under sink valve design
  • Creates a domestic hot water recirculation system without dedicated return loop piping
  • Easy to retrofit to existing plumbing system
  • Conserves water by greatly reducing the time it takes to get hot water
  • Analog clock timer allows you to set the system to work during peak usage hours or to work continuously
  • System includes an HLS-2 Hot-Link cartridge circulator, adapter unions, a Hot-Link bypass valve and flex hoses
Applications
  • Domestic Hot Water Recirculation Systems
  • Tank Type Water Heaters Only
