5900 Series FlexBalance Air Separator

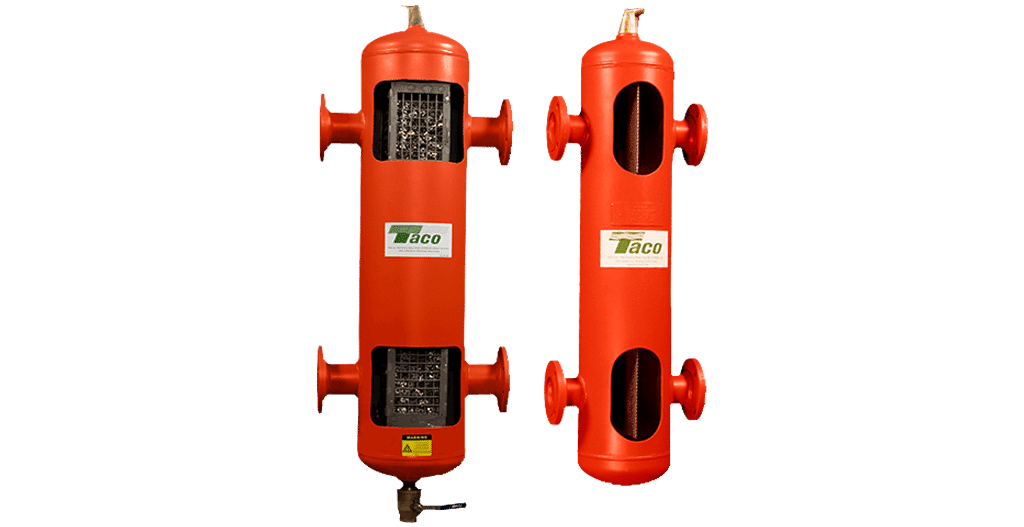

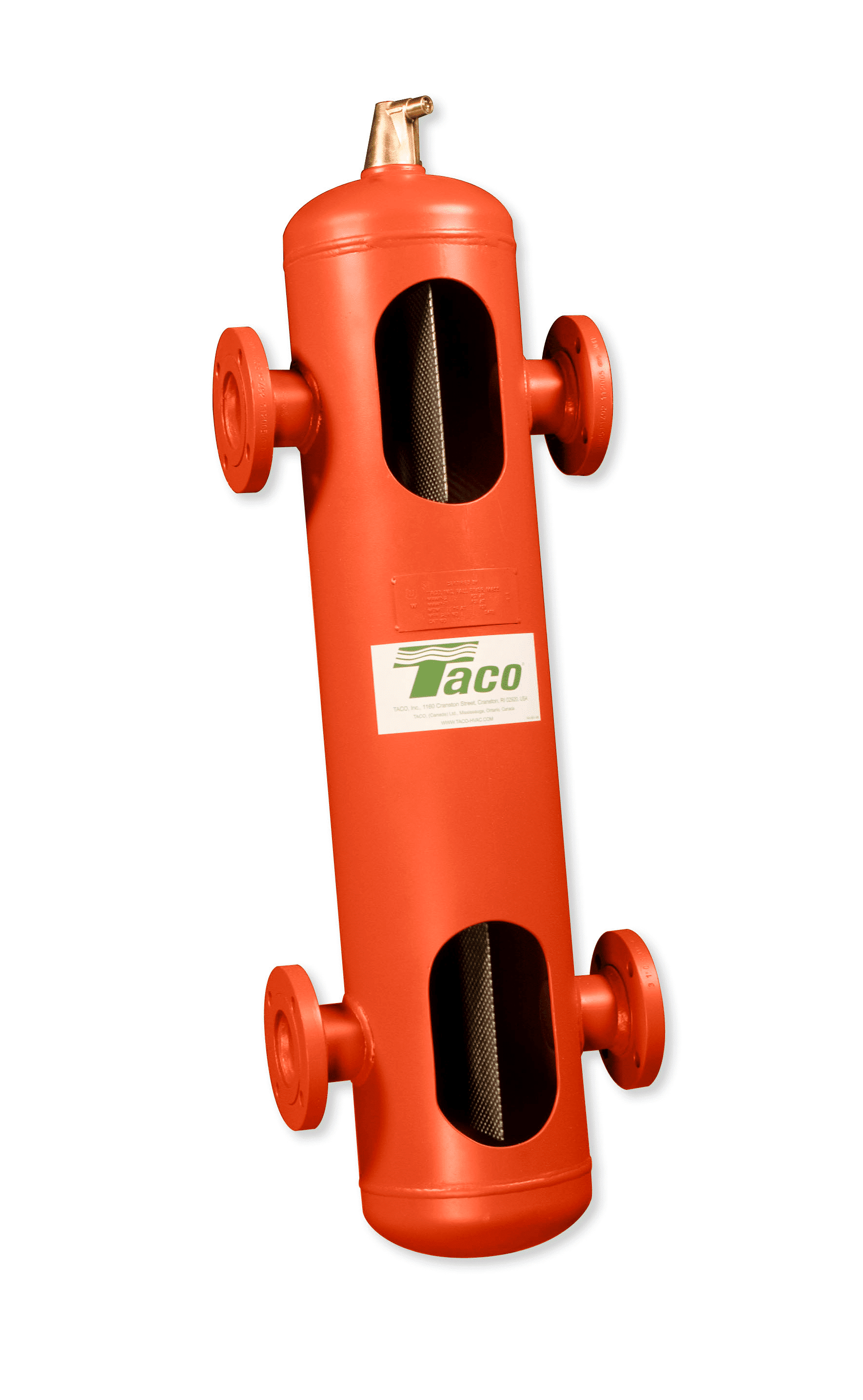

The Taco patented 5900 Series FlexBalance Air Separator acts as a hydraulic bridge between the primary and secondary heating and cooling applications to provide improved system energy efficiency and allow use of smaller pumps for each system circuit. The 5900 Series FlexBalance Air Separator helps prevent hydraulic coupling of pumps or pumps in series by primary/secondary configurations and prevent unanticipated ghost-flows caused by oversized pumps in primary and secondary circuits. They are available with optional 304SS Pall ring basket configurations to enhance the air and dirt separation capabilities of the 5900. 5900 Series FlexBalance Air Separator Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. All fabrication is done in-house to assure a high level of quality.

Catalog
Instruction Sheet
Submittal Data
Test Reports
Brochure
eLink Instructions
Introducing eLink® Connectivity

eLink® is Taco Comfort Solutions’ line of cloud services, providing users access to their devices data and performance while giving them control over their comfort. Using a Taco product featuring eLink provides users with support, monitoring, or controls straight from their mobile phone, tablet, or laptop. Now, it’s even easier to get important information, status updates and control of your Taco products. eLink provides the answer for both residential and commercial applications, just look for the logo to see if your product is connected.

Products featuring eLink are categorized into three application specific categories: Support, Monitoring, and Controls. These features of eLink identify how the cloud provides you with the support and control you require.

Learn More

Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

GPM: Up to 1,409
Connection Sizes: 2-12″
Sizes: 6″ dia. x 36″ height – 30″ dia. x 186″ height
Working Pressure: 125,150PSI Standard (Optional 175, 250, 300PSI, Higher Pressures Optional)
Max. Operating Temp.: 240°F (Optional Higher Temperatures Available)

Features
  • Designed, constructed and tested to ASME Section VIII, Div. 1 requirements
  • Available with SS Pall Ring configuration for enhanced air and dirt separation capability
  • Furnished with Air Vent and full port blow down valve
  • Higher max. pressures available
  • All fabrication done in house
  • National Board Registration
  • CRN registration (optional)
Applications
  • Hot Water Heating Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Hydronic Heating & Cooling
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal
