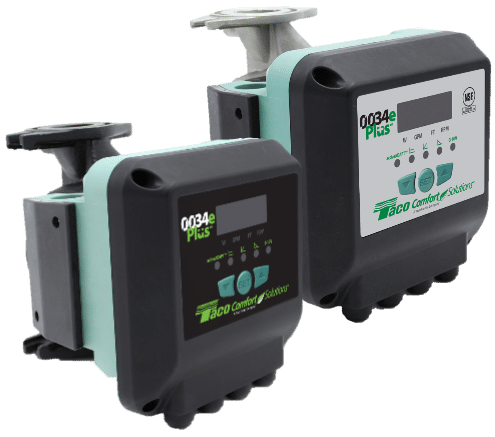

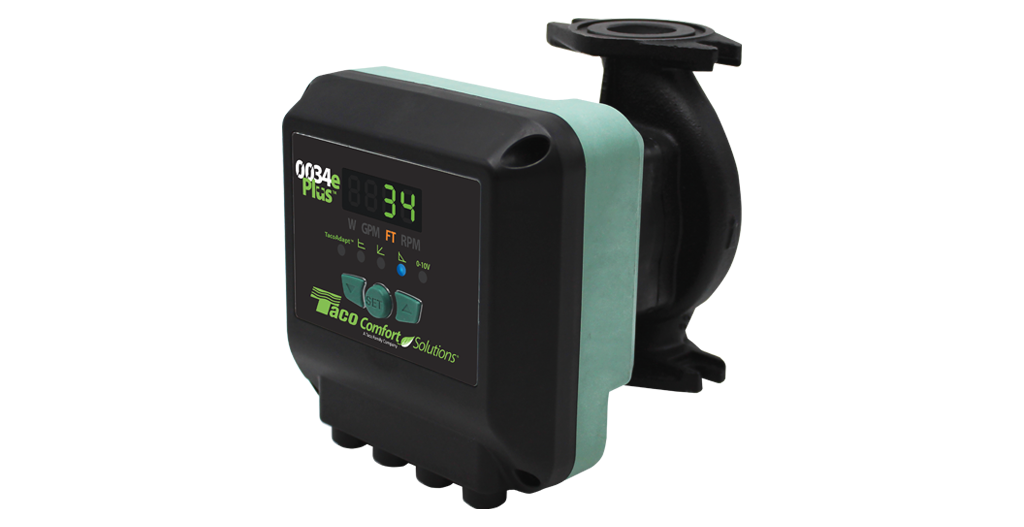

0034e & 0034ePlus ECM High-Efficiency Circulators
Easy ECM – Easy to install. Easy to program.
The 0034e™ & 0034ePlus™ ECM High-Efficiency Circulators are high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e comes with an easy-to-use dial while the 0034ePlus has an intuitive digital user interface.
| Catalog | ||
| Instruction Sheet | ||
| Submittal Data |
Find your Taco Sales Representative |
| Click below to get in touch with your local Taco supplier: |
 |
| Find a Rep |
We’re Here to Help |
| Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you. |
 |
| Support |
Performance Data
Shut-off Head: 34 ft
Max Flow: 50 gpm
Max Pressure: 150 psi (10.3 bar)
Max Temp: 230° F (110° C)
Min Temp: 14°F (-10°C)
Voltage: 115/208/230V, 50/60Hz Single phase
Max Power: 170 W
Max AMP: 1.48 A
Flange-to-flange: 6 ½”
Features
- Replaces all single speed and 3-speed circulators in its class
- Rotatable control cover to simplify installation
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit-up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Double insulated
- Whisper quiet operation
Applications
- Closed Loop Hydronic Heating
- Hydronic Systems with Zone Vvalves
- Zoning with Circulators
- Hydronic Heating & Cooling TRV Systems
- DHW recirculation (Stainless Steel)
- Constant Flow Applications
