0015e3 ECM High-Efficiency Circulator

0015e3 ECM High-Efficiency Circulator

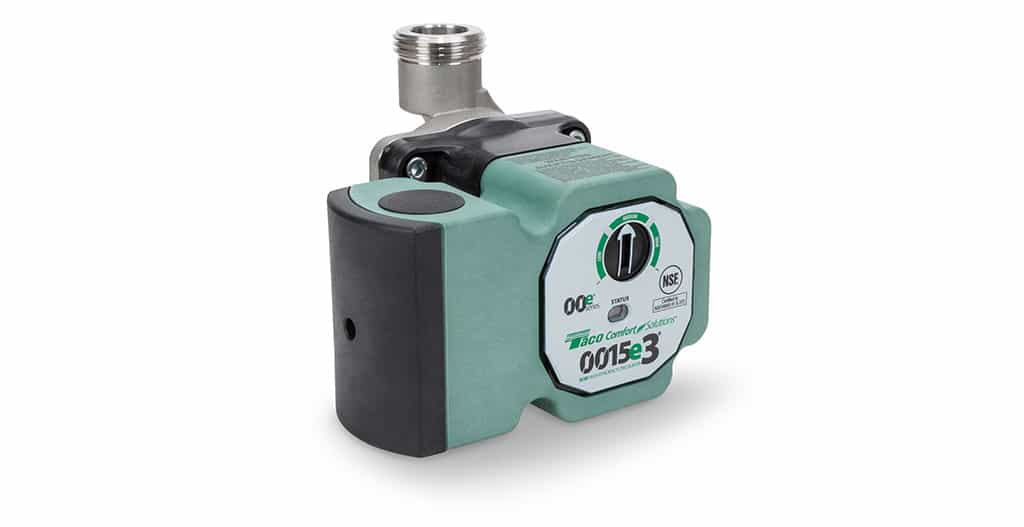

The Taco 0015e3® ECM High-Efficiency Circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. With 3 easy settings, the 0015e3® ECM High-Efficiency Circulator delivers performance, reliability and ease of installation that made the 00® famous. Install it, forget it!®

Catalog
Instruction Sheet
Submittal Data
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

Flow Range: 0-16 GPM
Head Range (ft): 0-18′
Max. Operating Pressure:
    –  Cast Iron: 125 psi (8.6 bar)
    –  Stainless Steel: 150 psi (10 bar)
Max. Water Temp.: 230°F (110°C)
Min. Water Temp.: 36°F (2°C)
Voltage: 120V, 60 Hz Single phase
Max. Operating Power: 44W
Max. AMP Rating: 0.54

Features
  • BIO Barrier® protects the pump from system contaminants.(Cast Iron only)
  • SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
  • High-efficiency ECM motor uses up to 85% less electricity
  • 3 Easy Settings:
    • LOW (5 ft. head)
    • MEDIUM (10 ft. head)
    • HIGH (18 ft. head)
  • Dual electrical knockouts
  • 6″ stranded wire leads for no-fumble wiring
  • Double Insulated. No ground necessary.
  • Integral Flow Check (IFC®) included
  • Whisper Quiet Operation
Applications
  • Closed loop hydronic systems

  • Open loop potable water

  • Domestic water recirculation

  • Indoor use only

  • Water or maximum of 50% water/glycol solution
