1900e Series ECM High-Efficiency Circulators

1911ecm™ & 1915ecm™

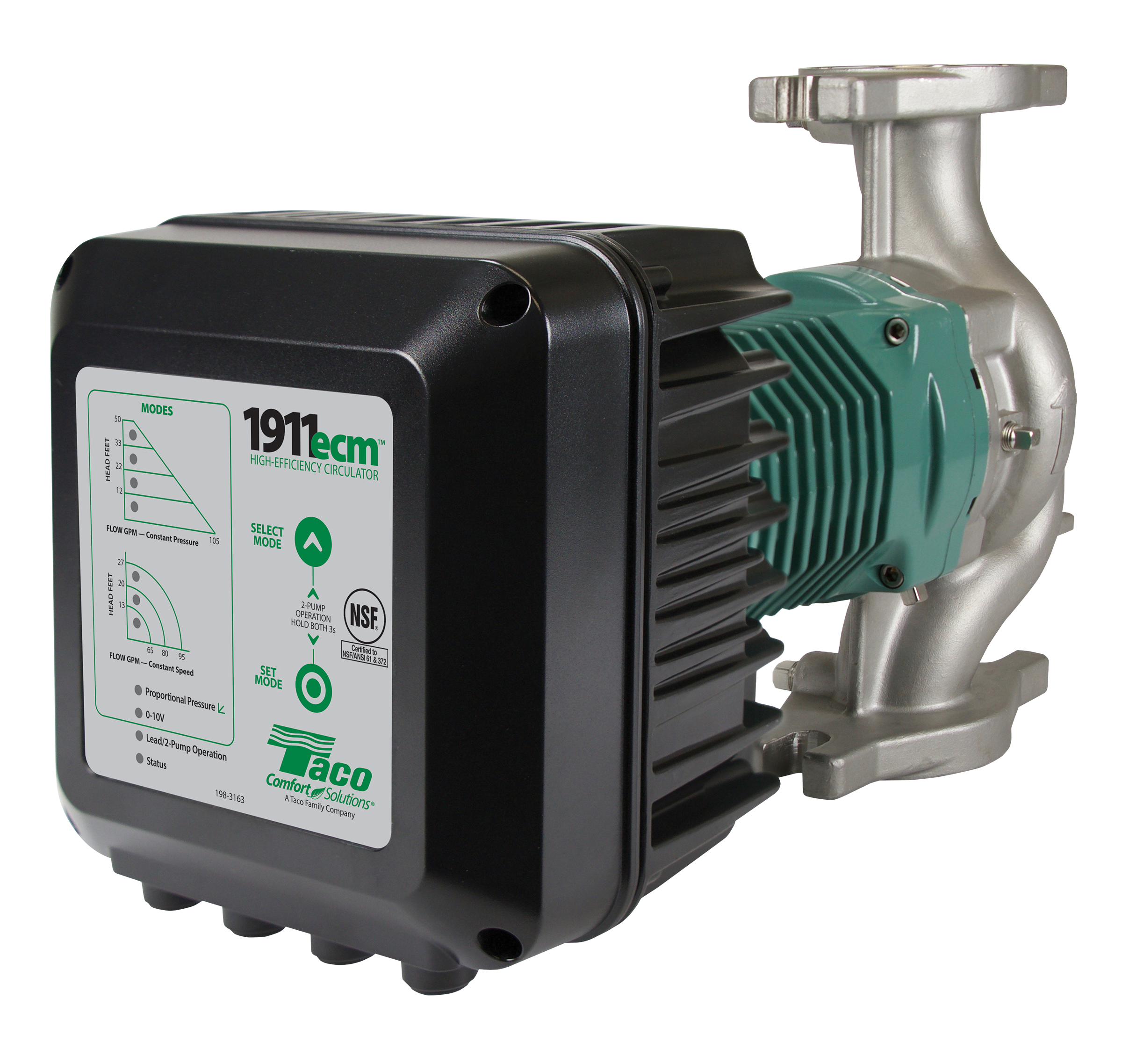

1911ecm™ & 1915ecm™ High-Efficiency ECM Circulator Pumps

The 1900e® Series are self-sensing, close-coupled, mechanically sealed in-line circulator pumps that exceed industry and efficiency standards with an advanced hydraulic design. They feature a high-efficiency volute, ECM motor, and integrated frequency drive. Simple yet versatile control options include constant pressure, constant speed, proportional pressure, 0-10Vdc, and parallel pump alternation. These standard features combined with the intuitive user interface allow for quick start-ups achieving optimum system efficiency and maximum comfort. These pumps are available in Ductile Iron for closed-loop hydronic heating and cooling systems or Stainless Steel, NSF Commercial Hot Certified for DHW applications.

Instruction Sheet
Submittal Data
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Performance Data

Max. Shut-off Head:

1911ecm: 50′
1915ecm: 65′

Max. Flow:

1911ecm:1 05 USGPM
1915ecm: 120 USGPM

Max. Operating Pressure: 175 PSI (12 bar)
Water Temperature Range: 36 to 230˚F (2 to 110˚C)
Ambient Temperature Range: 32 to 104˚F (0 to 40˚C)
Ambient Humidity: Less than 95% RH (Indoor Use Only)

  • ECM brushless DC, high-efficiency, soft start, high starting torque motor
  • Easy to program pump interface
  • Self-sensing
  • Multiple Operating Modes
    • 4 Constant Pressure
    • 3 Constant Speed
    • 1 Proportional Pressure
  • LED Status Light
  • Error Diagnostics
    • Locked Rotor
    • Over Current
    • Over & Under Voltage
    • Over Temperature
    • Communications Failure
    • Dry Run
  • External Inputs/Outputs
    • 0-10Vdc external speed control
    • Remote enable
    • Overload relay output
    • Parallel pump control
  • High-quality mechanical seal
    • Carbon/Silicon-Carbide/EPDM for CI Model
    • Carbon/Silicon-Carbon/Viton for SS Model
  • Ductile Iron Model: Closed-loop, pressurized Heating, and Chilled Water HVAC
  • Stainless Steel Model: Potable water systems (DHW recirculation, pressure boosting)
    recirculation, pressure boosting)
