00 Series Cartridge Circulators

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Catalog
Instruction Sheet
Submittal Data
Replacement Parts
Performance Curves
00 Cross Reference
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems
Models & Related Documents

Model 003 Cartridge Circulator
Flow: 0-7 gpm | Head: 0-5 ft

Model 003 IFC® Cartridge Circulator
Flow: 0-6 gpm | Head: 0-4.5 ft

Model 005 Cartridge Circulator
Flow: 0-19 gpm | Head: 0-9 ft

Model 005 IFC®Cartridge Circulator
Flow: 0-13.5 gpm | Head: 0-7.5 ft

Model 006 Cartridge Circulator
Flow: 0-11 gpm | Head: 0-12.5 ft

Model 006 IFC Cartridge Circulator
Flow: 0-9 gpm | Head: 0-8.5 ft

Model 006 Flanged Cartridge Circulator
Flow: 0-12.5 gpm | Head: 0-8 ft

Model 006 IFC Flanged Cartridge Circulator
Flow: 0-10 gpm | Head: 0-7 ft

Model 007 Cartridge Circulator
Flow: 0-23 gpm | Head: 0-10 ft

Model 007 IFC Cartridge Circulator
Flow: 0-17 gpm | Head: 0-8.5 ft

Model 008 Cartridge Circulator
Flow: 0-15 gpm | Head: 0-15 ft

Model 008 IFC Cartridge Circulator
Flow: 0-13 gpm | Head: 0-15 ft

Model 00R-IFC Cartridge Circulator
Flow: 0-12.5 gpm | Head: 0-15 ft

Model 009 Cartridge Circulator
Flow: 0-8 gpm | Head: 0-34 ft

Model 009 IFC Cartridge Circulator
Flow: 0-10 gpm | Head: 0-35 ft

Model 0010 Cartridge Circulator
Flow: 0-32 gpm | Head: 0-10 ft

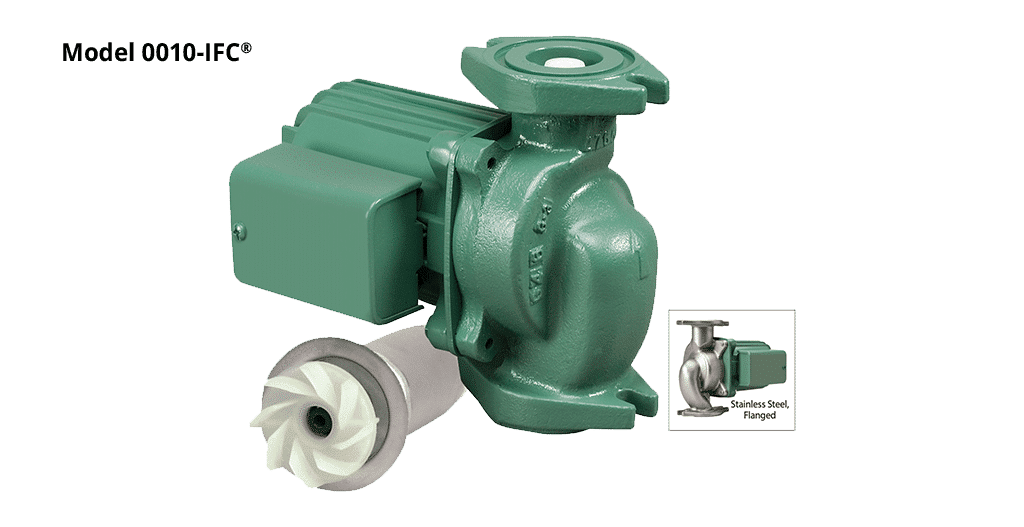

Model 0010 IFC Cartridge Circulator
Flow: 0-30 gpm | Head: 0-9 ft

Model 0011 Cartridge Circulator
Flow: 0-31 gpm | Head: 0-31 ft

Model 0011 IFC Cartridge Circulator
Flow: 0-30 gpm | Head: 0-31 ft

Model 0012 Cartridge Circulator
Flow: 0-52 gpm | Head: 0-14 ft

Model 0012 IFC Cartridge Circulator
Flow: 0-42 gpm | Head: 0-13 ft

Model 0013 Cartridge Circulator
Flow: 0-34 gpm | Head: 0-33 ft

Model 0013 IFC Cartridge Circulator
Flow: 0-33 gpm | Head: 0-32 ft

Model 0014 Cartridge Circulator
Flow: 0-32 gpm | Head: 0-23 ft

Model 0014 IFC Cartridge Circulator
Flow: 0-29 gpm | Head: 0-23 ft
