00 Series 3-Speed Cartridge Circulators

Presenting Our Versatile Taco 00 3-Speed Circulators!

All 00 ® Series 3-Speed Cartridge Circulators include our replaceable cartridge design and an Integral Flow Check (IFC ®) which prevents gravity flow, reduces installation costs and improves system performance. The stainless steel 00 ® Series 3-Speed Cartridge Circulators are NSF-61 & 372 listed.

0010 Multi-Speed Cartridge Circulator with Integral Flow Check and 4–Bolt Universal Flange

0015 Multi-Speed Cartridge Circulator with Integral Flow Check
The rugged 0015 3-Speed circulator is specifically designed to provide dial-in precision to meet the requirements of any hydronic heating system, including radiant and higher head systems. In radiant applications, its’ 3-Speed switching capability gives you the fine tuning control to match a wide combination of tube diameters and lengths of run. The 0015 delivers the highest starting torque in its class and is a direct replacement for the Grundfos UPS15-58. The Stainless steel 0015 is ideal for potable water and hot water recirculation systems and directly replaces a Grundfos UPS15-55 3-speed.

The 0010 3-Speed Service Pump is designed as an ideal replacement circulator for service contractors to use on any emergency “no heat” call. The 0010 Service Pump replaces most commonly used residential circulators. Simply install it and set the speed to match the original pump performance. The handy universal 2-way flange matches up to any companion flange orientation you may find on the job.

0012 Multi-Speed Cartridge Circulator with Integral Flow Check
Our powerful 0012 3-Speed circulator is designed for high-flow/medium head applications in large residential/light commercial hydronic heating or chilled water cooling systems. Its high flow capacity is ideal for primary loops or high flow , high BTU applications. We‘ve added a robust switch and knob assembly and a large wiring box to simplify installation. The Stainless steel 0012 3-Speed is best suited for potable water and hot water recirculation systems. The 0012 3-Speed is a direct replacement for the Grundfos UPS43-44 3-Speed.

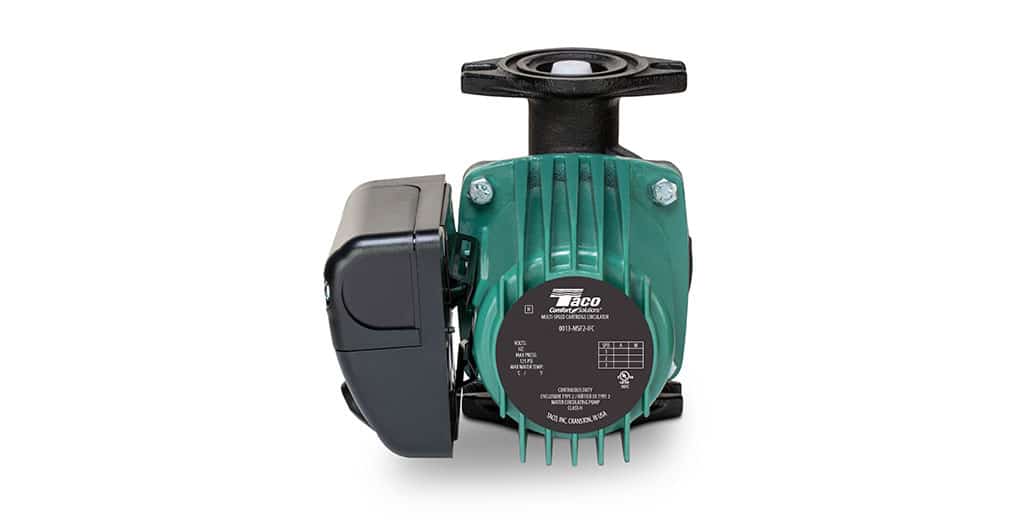

0013 Multi-Speed Cartridge Circulator with Integral Flow Check
The high-performance 0013 3-Speed circulator is designed for high-head/high-flow, large residential/light commercial hydronic heating and chilled water cooling systems. The 3-Speed switching ability lets you fine tune the performance to match a wide range of applications. The Stainless steel 0013 3-Speed is best suited for potable water and hot water recirculation systems. The 0013 3-Speed directly replaces a Grundfos UPS26-99 3-Speed.

Catalog
Instruction Sheet
Submittal Data
Performance Curves
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

0015
Max. Flow: 18 GPM
Max. Head (ft): 17′
Min. Fluid Temp.: 40˚F (4˚C)
Max. Fluid Temp.: 230°F (110˚C)
Max. Working Pressure: 125 PSI
Connection Sizes: ¾”, 1″, 1¼”, 1½” Flanged

0010
Max. Flow: 31 GPM
Max. Head (ft): 11′
Min. Fluid Temp.: 40˚F (4˚C)
Max. Fluid Temp.: 230°F (110˚C)
Max. Working Pressure: 125 PSI
Connection Sizes: ¾”, 1″, 1¼”, 1½” Flanged

0012
Max. Flow: 45 GPM
Max. Head (ft): 15′
Min. Fluid Temp.: 40˚F (4˚C)
Max. Fluid Temp.: 210°F (98˚C)
Max. Working Pressure: 125 PSI
Connection Sizes: ¾”, 1″, 1¼”, 1½” Flanged

0013
Max. Flow: 30 GPM
Max. Head (ft): 30′
Min. Fluid Temp.: 40˚F (4˚C)
Max. Fluid Temp.: 210°F (98˚C)
Max. Working Pressure: 125 PSI
Connection Sizes: ¾”, 1″, 1¼”, 1½”



Features

  • 3-Speed Switch
  • Fine tune to system requirements
  • Highest performance & starting torque in class
  • Heavy-Duty construction for longer life
  • 4-bolt universal flange (0010 only)
  • Removable high-flow Integral Flow Check (IFC® ) – Prevents gravity flow – Reduces installation costs – Improves pump performance
  • Replaceable cartridge design
  • Quiet, efficient operation
  • Self lubricating, no mechanical seal
  • Wide range of applications
  • Cast Iron or Stainless Steel, flanged construction



Applications
  • Hydronic Heating & Cooling
  • Domestic Hot Water Recirculation Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal
