A family company, vigorously pioneering innovation, continuously striving to be the best, building relationships based on trust, with unmatched dedication to toughness and superior performance.

The Best at Delivering Comfort

• Taco vertical in-line pumps meet or beat leading competitive pump efficiencies over 84% of the time
• SelfSensing ProBalance® technology for fast, accurate DIY system balancing
• Award-winning Taco Tags for vital product information right on your phone

• Top centerline discharge – simplifies piping layouts, reduces piping strain, makes pump self-venting
• Easy-to-replace, slip-on shaft sleeve – easy field maintenance, lowers long-term maintenance costs
• Award-winning Taco Tags for vital product information, right on your phone

• Precise flow channeling through Patent Pending head design
• Discourages Legionella and other bacterial growth
• Minimizes pressure loss, discourages short-cycling
• Available with sight glass for failure detection
• NSF/ANSI 61-G certified
• Retrofittable to meet ASHRAE Standard 188 on existing designs

• Designed, constructed, and tested to ASME Section VIII, Div. 1 req.; U stamp provided
• Built to last – 0.5mm thick plates for standard designs; 0.6mm plates for high-pressure design requirements
• Corrosion-resistant 304/316 stainless steel & titanium heat transfer plates are available
• Working pressure 150-psi & 300-psi; higher pressures on request
• High-temperature gaskets available – NBR-HT rated to 284°F; EPDM-HT rated to 320 °F

• Designed, Constructed, & Tested to ASME Section VIII, Div. 1 req.; U Stamp Provided
• Wide Variety of Materials Available to Meet your Application-Specific Needs
• High-Temperature & High-Pressure Designs Available
• Cast 316SS 4″-16″ (coming soon)
• Cast Steel Flanged Heads 12″ – 16″

• Easy maintenance through Patent Pending on/off magnet
• High-power neodymium magnets
• 2” full port blow down on 3” and larger models
• Reduced field install and maintenance times
• High-efficiency micro-bubble and dirt separation through proven PALL Ring technology

• 1911ecm: 425 watts, 50 feet max head, 105 GPM max flow
• 1915ecm: 650 watts, 65 feet max head, 120 GPM max flow
• Designed for heating or NSF commercial hot applications
• Easy-to-program pump interface
• Constant speed, constant pressure, or proportional pressure modes
• BMS 0-10V; 2-pump operation

• 1/3 HP to 2HP ECM Circulator, 62 Feet Max Head, 320 GPM Max Flow for commercial & large residential jobs
• Modbus, BACnet, 0-10Vdc & Pulse Width Modulation (PWM) are all standard
• High-efficiency ECM technology uses up to 85% less electricity.
• Constant speed, constant pressure, proportional pressure, and TacoAdapt™; self-adjusting proportional pressure
• Stainless steel models NSF 61 & 372 Commercial Hot certified

• 44 watts, 18 feet max head, 16 GPM max flow
• Designed for heating or hot water recirculation
• Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
• 0018e Mobile app provides more operating choices, real-time control, display, and diagnostics
• Easy-to-use dial matches system requirements:
  • –Bluetooth – 0018e Mobile app
  • –Proportional Pressure
  • –Constant pressure
  • –Min/Max fixed speed
  • –BIO Barrier®, SureStart ® & TacoAdapt™

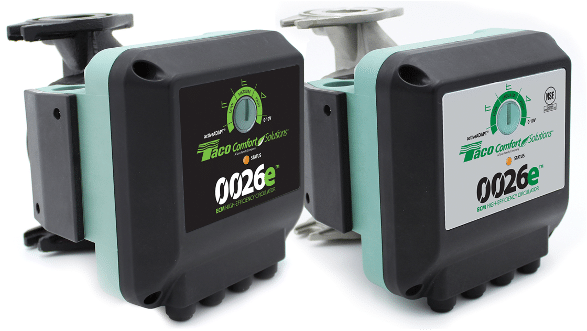

• 120 watts, 26 feet max head, 44 GPM max flow
• Designed for heating or hot water recirculation
• Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
• 5 easy dial settings to match system requirements:
  • TacoAdapt™ self-adjusting proportional pressure
  • Constant pressure – 8 ft. Head, 16 ft. head
  • Max fixed speed – 26 ft. head
  • Min/Max fixed speed
  • 0-10V DC & PWM
• BIO Barrier® & SureStart®

• 180 watts, 34 feet max head, 50 GPM max flow
• Designed for heating or hot water recirculation
• Cast iron or stainless steel volute (NSF/ANSI 61 & 372 certified)
• Digital display with real-time feedback:
  • Watts, GPM, Feet of Head, RPM
• Push button control with 5 operating modes:
  • TacoAdapt™ self-adjusting proportional pressure
  • Constant pressure – 5 settings
  • Proportional pressure – 5 settings
  • Min/Max fixed speed
  • 0-10V & PWM
• BIO Barrier® & SureStart®

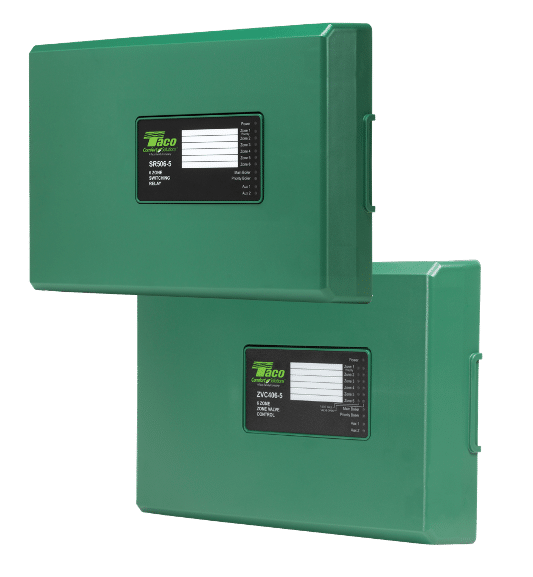

• Diagnostic lights for all outputs; zones, boiler’s & AUX’s
• Up to 5 programmable outputs to better control system
• Priority protection, post-surge, pump exercise timers
• Simple wiring and grounding options
• DHW recirculation – SmartPlus logic
• Bluetooth and Modbus communications
• Over-the-air updates (OTA); future proof
• Added features are unlocked w/Taco Control mobile app

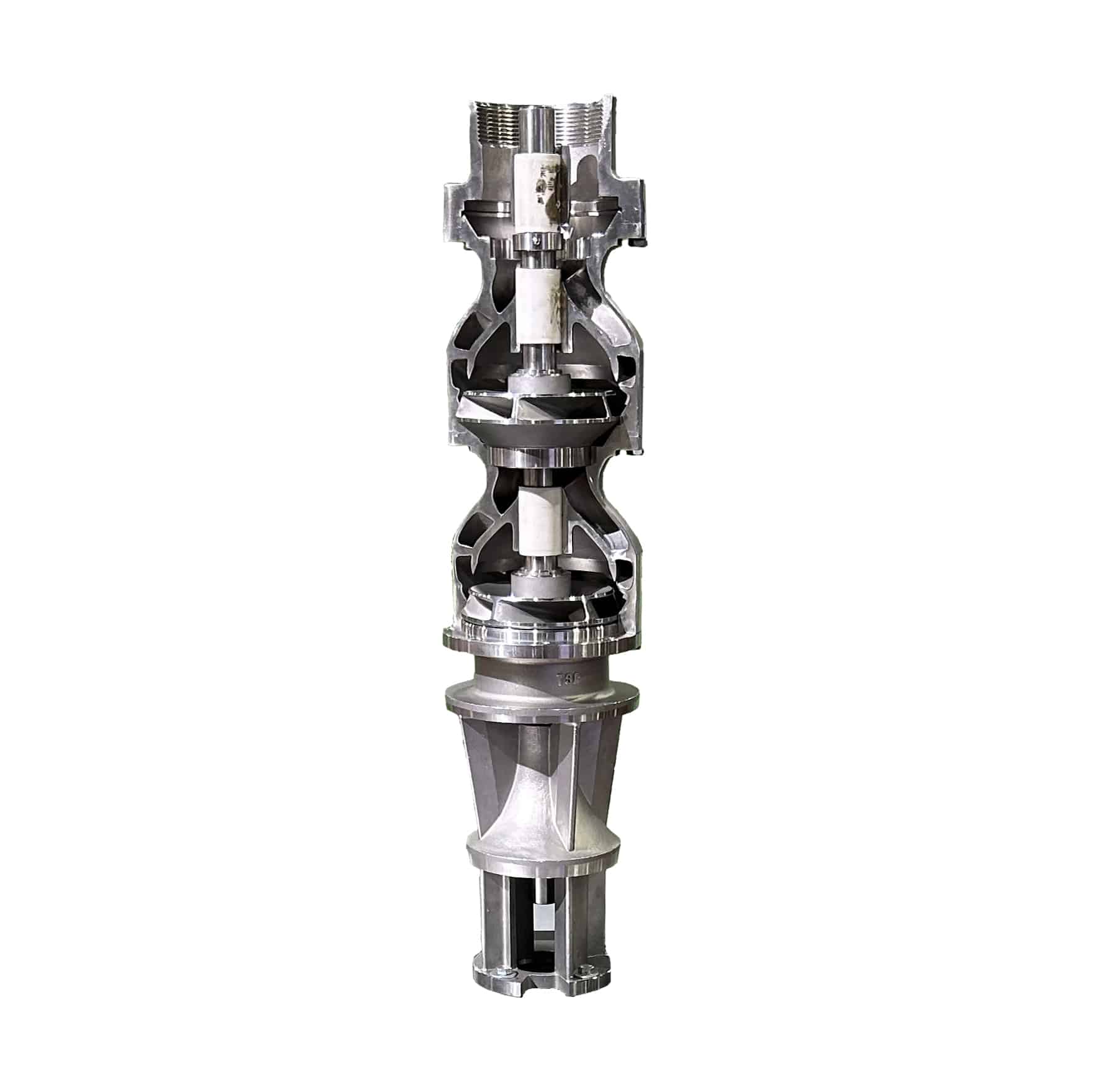

• 5” – 21” Bowl Diameters
• Flow: 50 – 8,000 GPM
• Total Dynamic Head: 0 – 800 Feet
• Standard Stainless Steel Investment Cast Impellers
• Ductile Iron Bowls & Discharge Heads

• 5” – 16” Bowl Diameters
• Flow: 100 – 5,500 GPM
• Investment Cast Stainless Steel Impellers
• Ductile Iron Bowls
