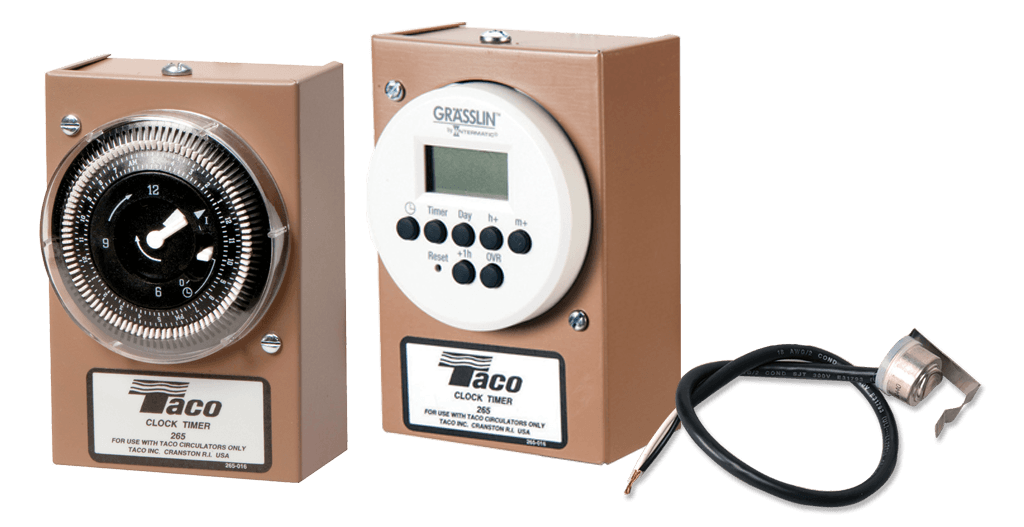

00 Timer/Aquastat

00 Timer/Aquastat
24 Hour Analog Timer & 7 Day Digital Programmable Timer

The 00 Timer/Aquastat combination is designed to cycle the circulator during peak demand periods. Use the two devices together or separately. When used together, the Timer switches ON, sending power to the unit. The temperature aquastat measures the temperature and cycles the circulator as long as the Timer is “ON.” If used separately, the Timer operates the circulator during the chosen number of 15-minute intervals.

When using only the aquastat, the circulator cycles continuously to maintain a temperature between 95º F and 115º F. For maximum convenience and flexibility, you can retrofit both to any Taco 00® Series Cartridge Circulator.

Catalog
Instruction Sheet
Submittal Data
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

Voltage: 115V/60
Analog Timer: 24 Hour/15 Minute Intervals
Digital Timer: 7 Day/1 Minute Intervals
Aquastat Temp. Range: 95°F – 115°F
Aquasta Connection Size: ¾” Pipe Clip Fits on ½” Pump Casing

Features
  • Analog Timer:
    • 24 Hour Clock
    • 15 Minute Intervals
    • On/Off /Auto Switch
  • Digital Timer:
    • 7 Day Programmable
    • 1 Minute Intervals
    • 2500 Hour Power Outage Backup
    • LCD Display
  • Aquastat:
    • Easy ¾” Clip-On fits ½” Pump Casing
Applications
  • Domestic Hot Water Recirculation Systems
Models & Related Documents
