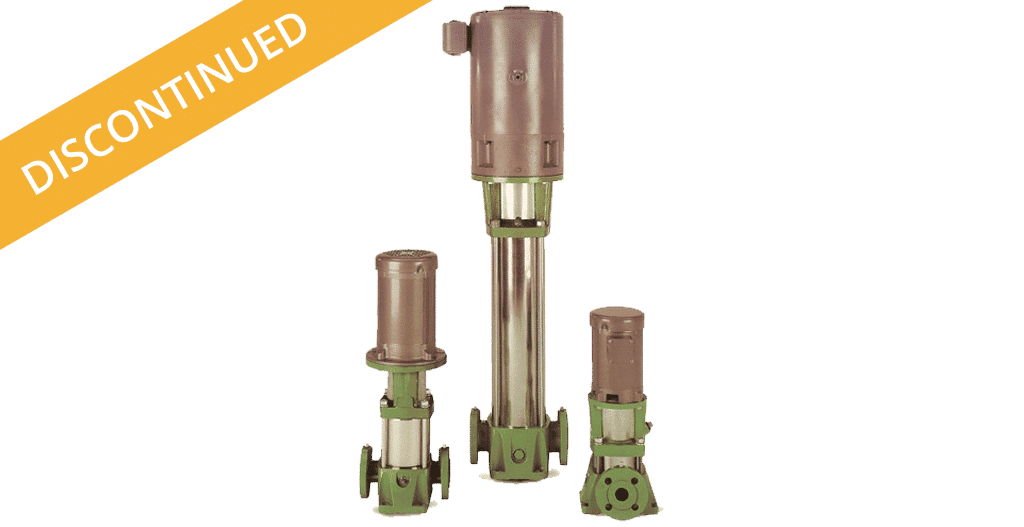

VM Pumps Vertical Multi-Stage Pumps
Sorry – this product is no longer available
There is not a replacement for this product as it has been discontiuned. Documents and resources are accessible below.
This product is no longer available. Documents and resources are still accessible.
Taco Vertical MultiStage Pumps raise the standards in value, performance, and durability. Perfect for new or retrofit high-pressure applications, Taco Vertical MultiStage Pumps’ space-saving design makes installation and maintenance a breeze.
| Catalog | ||
| Instruction Sheet | ||
| Submittal Data |
Find your Taco Sales Representative |
| Click below to get in touch with your local Taco supplier: |
 |
| Find a Rep |
We’re Here to Help |
| Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you. |
 |
| Support |
Performance Data
VM01
Liquid Temp. Range 5ºF (-15ºC) to 250ºF (120ºC)
Max. Working Pressure 360 psi (25 Bar)
Min. Pumping Rates 1.2 GPM
Pipe Connections 11⁄
4″ CLASS 300
VM02
Liquid Temp. Range 5ºF (-15ºC) to 250ºF (120ºC)
Max. Working Pressure 360 psi (25 Bar)
Min. Rate of Flow 3 GPM
Pipe Connections 11⁄
4″ CLASS 300
VM04
Max. Working Temp. 5ºF (-15ºC) to 250ºF (120ºC)
Max. Working Pressure 360 psi (25 Bar)
Min. Rate of Flow 5.3 GPM
Pipe Connections 2″ CLASS 300
VM06
Max. Working Temp. 5ºF (-15ºC) to 250ºF (120ºC)
Max. Working Pressure 360 psi (25 Bar)
Min. Rate of Flow 8.5 GPM
OPERATING SPECIFICATIONS
Pipe Connections 2″ CLASS 300
Features
Applications
- Pressure Boosting
- Boilerfeed
- Cooling Towers
- Water Distribution, Treatment, and Supply
