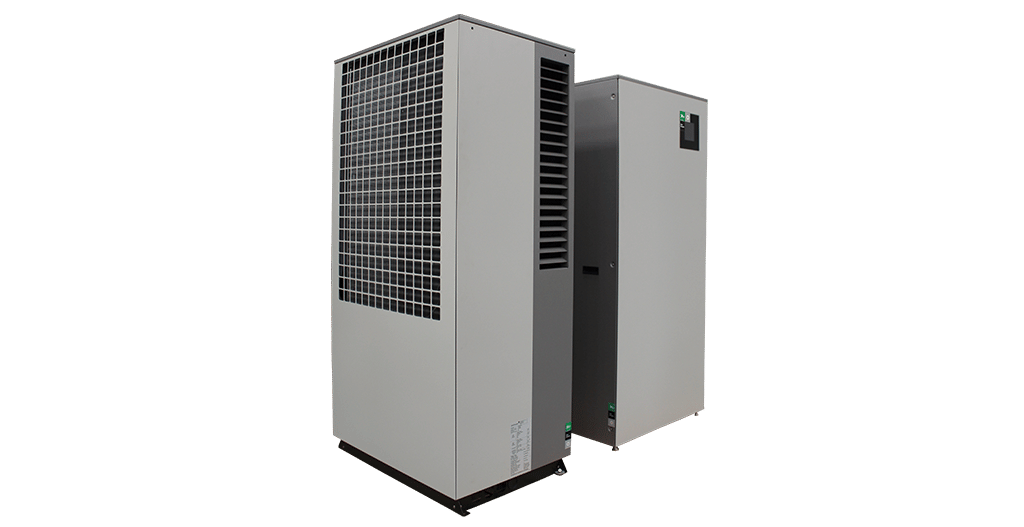

System M

Air-to-Water Heat Pump

The ideal solution for homeowners who want to reduce their carbon footprint while increasing their indoor comfort.

System M is a radically innovative air-to-water heat pump system that provides comfortable, efficient heating, cooling, and plenty of domestic hot water to homeowners without the use of fossil fuels — so it doesn’t create CO2. This complete, packaged system is simple to install, simple to operate, and a simply unique solution for low-carbon heating and cooling.

Simply put, System M is a Milestone. System M also enables the addition of even more comfortable heating and cooling options, like radiant floor heating, towel warmers, or integration into a central cooling system.

Catalog
Instruction Sheet
Submittal Data
Performance Curves
Case Studies
Specifications
Test Reports
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

44,000 BTU/h heating capacity
3-1/2 tons cooling capacity
Max COP > 4
Outdoor unit produces 29 dB(A) @ 10m; equivalent to a whisper
Outdoor temperature range: -7°F (-22°C) to 113°F (45°C)

Features
  • Inverter-driven, variable speed scroll compressor with wide operation range & superior reliability
  • High volumetric efficiency (HVE) valve boosts heating and cooling efficiency
  • Maintenance-free, variable speed, ECM fan motor
  • Sleek, award-winning design
  • Tangential air discharge and innovative fan blade ensure whisper quiet operation and optimal airflow
  • Fully assembled indoor HydroBox cuts installation time in half
  • Easy installation; just 6 pipe connections
  • Integrated 30-gallon buffer tank
  • Internet ready – just plug the unit into the home’s router
  • Intuitive touch screen display
  • Multi-tier control access
  • Software updates – a connected unit means it always has the latest features and upgrades
  • Commissioning report generated upon system start-up
  • All changes made to system settings are tracked
  • Optional 85-gallon indirect domestic hot water tank
Applications
  • Air handlers, fan coils
  • Radiant floors & ceilings
  • Low-temperature convectors
  • DHW production
Models & Related Documents
  • System M-1
    • System M Air-to-Water Heat Pump
  • SMT85-1

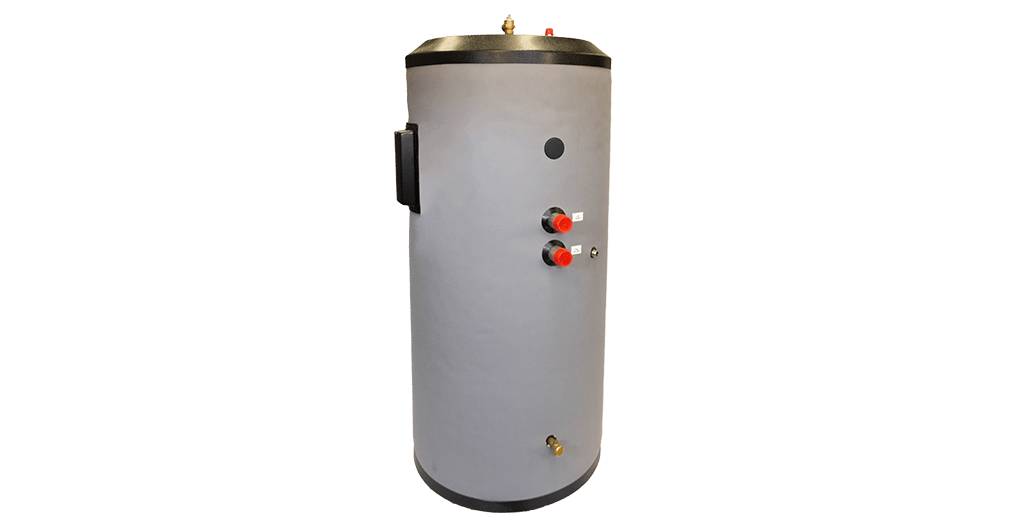

    • Optional 85-gallon Indirect Domestic Hot Water Tank
